Workpiece:

Teeth belt pulleys, sintered metal

Function:

Multispindle boring and tapping in orientated position

Machine design:

Machine body in heavy welding design
Unfinished material magazin for 120 workpieces
Automatic loading and unloading system
1 mutispindle boring unit
1 multispindle tapping unit

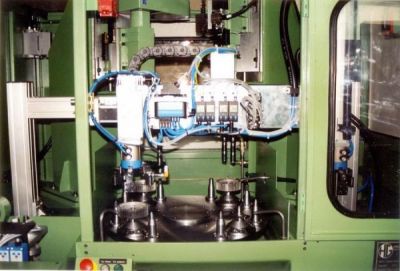

Round table with fixture plate and fixtures
Chip pan installed from machine front
Pneumatic- and electrische installation
Machine housing regarding UVV and CE regulations

Control:

Siemens type S7

Machine cycle:

Workpieces will be layed down into magazin
Automatic cycle
Pickup workpiece
Orientation and machine loading
Boring and tapping

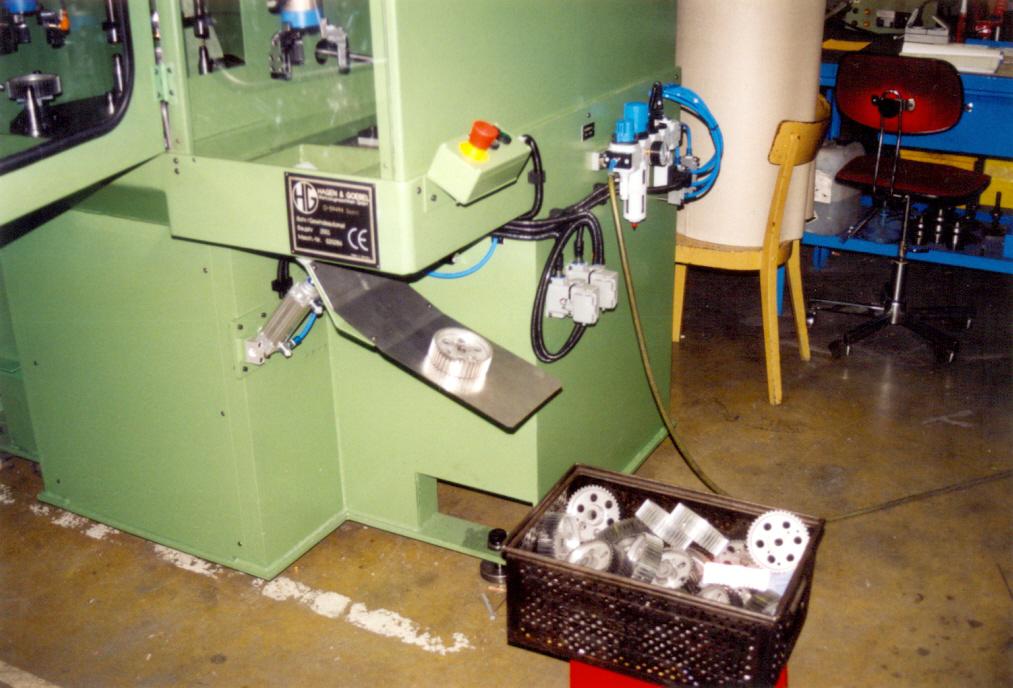

Unloading

Description:

Download Special machine type HG-808
